What's Included

Here's what's included with your Grace Server:​

  • Processor: NVIDIA Grace CPU Superchip (C2 module, 144 cores, 480GB)
  • Form Factor: 2U Server Rack
  • Power Supply: 3 × 2000W Redundant Titanium Level (96%) PSUs (peak ~900W)
  • Memory: 480 GB (integrated with Grace CPU)
  • Hard Drives
    • 4× 4TB E1S NVMe
    • 2× 2TB M2 NVMe
  • GPU: 1 × NVIDIA A2 GPU
  • OS: Ubuntu 24.04
  • Dimensions: 35” × 17” × 3.5”

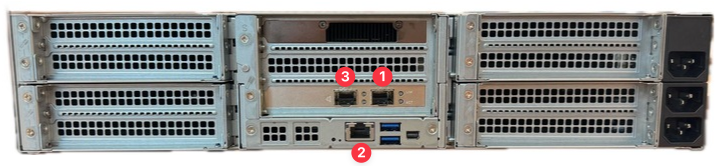

Grace Server

  1. Is to connect the 10GbE port into your regular network.
  2. Is to connect the bottom 1GbE BMC port into your management network via an Ethernet cable.
  3. The 10GbE port is not used.

Here's what's included with your Ampere Altra Single-Node Server:​

  • Processor: Ampere ARMv8.2-A 64-bit (80 total cores, 64 device cores, 3.0 GHz)
  • Form Factor: 2U Rack Server
  • Power Supply: Dual 2000W redundant
  • Memory: 128 GB (8× 16GB) RDIMM 3200
  • Hard Drives
    • 4× 4TB Micron 2.5” 7300 NVMe
    • 2× 2TB M2 Micron 2300
  • GPU: 1× NVIDIA T4
  • OS: Ubuntu 18.04
  • Dimensions: 26” × 19” × 3.5”

Altra Server
